D Ring Shackle Mount with Backer Plate - Bolt On Clevis Mount Bumper Shackle Bracket, Max 24T (52,910 Lbs) for Bumper, Bucket, Trailer, Truck
Materials: Forged Steel
Working Load Limit: 6Ton (13,227 Lbs Capacity)
Breaking Strength Limit: 24 Ton (52,910 Lbs Capacity)
Bolt: Grade 10.9
Color: Black, Green, Orange, Red or Customized
Finish: Zinc-plated or Customized
Package: Box or Bag or Customized (OEM Packaging is acceptable).
- Commodity name： D Ring Shackle Mount with Backer Plate - Bolt On Clevis Mount Bumper Shackle Bracket, Max 24T (52,910 Lbs) for Bumper, Bucket, Trailer, Truck
Key words:
Product Description
The JINGCHENG Upgrade D Ring Shackle Mount Bracket Provides Superior Towing Power for Vehicle Recovery and Heavy-Duty Towing Needs, This Clevis Mount Features A Towing Capacity Up To 6 T (13,227 Lbs) and Easy To Install and Bolt On The Bumper, Car and Truck or Tractor Buckets and Works Well with 3/4” D-Ring Shackle, Soft Shackle, Tow Hook, Trailer Rope To Keep It In Place and Stable & Safety While Pulling with Durability and Lasting Performance.
D Ring Shackle Mount Bracket was Made of High-Strength Drop Forged Steel with Heat Treated, The Bolt-on Clevis Mount Was Towing Capacity Up To 6 Tons (13,227Lbs) and the Break Strength Up To 24T (52,910Lbs) to Keep It More Safety & Stability. Bolt-on Clevis Mount Bracket with Backer Plate and Rubber Pad, Grade 10.9 Flange Bolts + Flat Washers + Hex Nuts + Spring Lock Washers + Metal Self-Locking Nuts, All the Hardware of Surface was Covered By Electro-Plating Black Protect. D-Ring Shackle Mount for Prevent Rust and Corrosion By Galvanized & Powder Coated and the Rubber Pad Protects Equipment Paint Surface, Withstands Harsh Weather Conditions and Extended Service Life. New Flame Design of Bumper Shackle Bracket Work Well With 3/4 D Ring Shackles, Soft Shackle, Tow Hook, Trailer Rope Great For Truck, ATV, UTV, Off Road Vehicles, Tractor Bucket Etc.

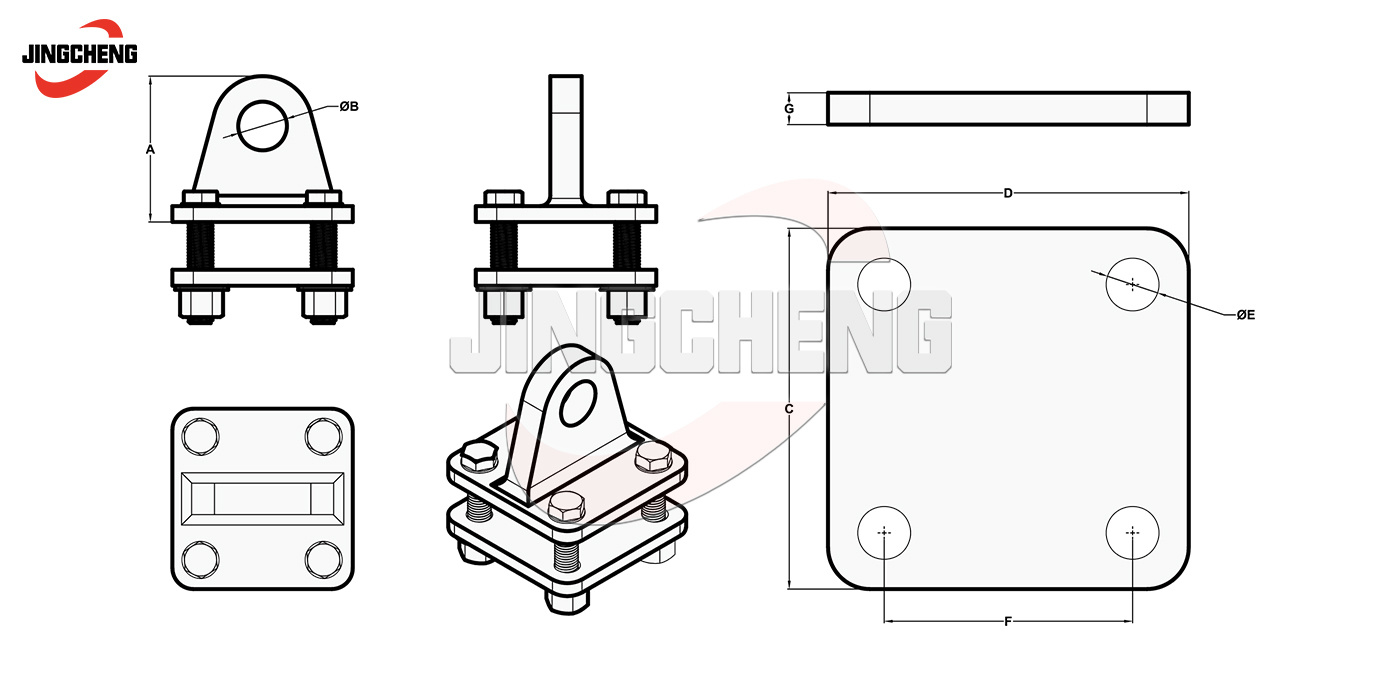

Parameter Table
| Item | Dimensions (in.) | Working Load Limit (kg) | Weight Each (kg) | Finish | ||||||
| A | B | C | D | E | F | G | ||||
| JCT131-010 | 2.75 | 0.92 | 3.38 | 3.38 | 0.5 | 2.32 | 0.31 | 6,000 | 1.8 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT131-011 | 2.85 | 0.9 | 3.4 | 3.4 | 0.5 | 2.32 | 0.3 | 5,000 | 1.5 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT131-012 | 2.76 | 0.9 | 4.2 | 3.26 | 0.47 | 2.32 | 0.3 | 5,000 | 1.6 | Zinc-plated, Chrome,Powder Coated or Customized |
Procution Process
Quality Control
From Material to the end produce process, every step must in accordance with ISO9001 standard.
The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| lmpact Tester | No Information | 1 | 3 | Acceptable |
| Rigging Tester | No Information | 1 | 5 | Acceptable |
| Universal Tester | No Information | 5 | 3 | Acceptable |
| Failure Tester | No Information | 2 | 5 | Acceptable |
| Hardness Tester | No Information | 2 | 2 | Acceptable |
| Spectrometer | No Information | 1 | 2 | Acceptable |
Packaging & Shipping
Evaluate
JINGCHENG Advantages
Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.
Strict quality control based on ISO9001 and 12 months warranty.
Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.
FAQ
01
Are you factory or Trading Company?
B) We also have good partners in our relative products,so we also act as a warehouse&distibutor through our network.We can help our clients source good quality products with suitable price if need.
02
What is your company advantages?
B) Strictly quality control regulation and experienced engineer and QC team to ensure the quality qualified.
C) Every requirement from our clients must be treated carefully and feedback fast by our experienced staff.Every Order's quality must be highly controlled by our skilled QC team.
D) WIN-WIN business is our goal. Stand in the client's angle to consider.We can give our clients best solutions in product designing,products purchasing ,shipping and quality claim.
E) Ordinary items usually have some stocks,small order can be accepted.
03
How do you control your quality?
B) From cutting materials to the end produce process,every step must in according with ISO9001 standard.
C) Materials should be brought from big steel company,Mill Sheet must be showed.QC team must following all produce progress and make detailed testing records of the quality checking.
D) Third Party inspection is accepted.
04
What's your company mainly exporting market?
