Tri-Ball Mount with Hook (2" Solid Shank, 1-7/8", 2" & 2-5/16" Chrome Balls)
- Commodity name： Tri-Ball Mount with Hook (2" Solid Shank, 1-7/8", 2" & 2-5/16" Chrome Balls)
Key words:
Product Description
Hauling some yard waste to the city dump? Taking the family camping for the weekend? Pulling some heavy-duty equipment around the farm? If you own more than one trailer, you know what a hassle it can be switching back and forth between ball mounts and keeping track of which ball mount fits which coupler. JINGCHENG has made things simple with the multi-ball mount with tow hook. This all-in-one ball mount behemoth features three trailer balls with three different ball diameters and a tow hook for recovery towing. It allows you to easily accommodate multiple trailers and coupler sizes and fits any trailer hitch with a 2" x 2" receiver tube opening.
For whatever trailer you are towing on any given day, the multi-ball mount makes it easy to hitch up and go. With three trailer balls on one shank, simply rotate the ball mount to the correct size ball, insert a hitch pin and you are ready to couple your trailer. There is no need to switch and store multiple ball mounts or to mount and torque different size trailer balls.
The tow hook and all three trailer balls on the multi-ball mount are welded onto a solid steel shank, giving them a strong foundation and eliminating the possibility of coming loose or being stolen. The 1-7/8" trailer ball offers a gross trailer weight capacity of up to 3,500 lbs. and a tongue weight rating of 350 lbs. The 2" ball has a GTW capacity up to 5,000 lbs. and a TW rating of 500 lbs. The 2-5/16" ball can tow up to 10,000 lbs. of GTW and 1,000 lbs. of TW. With the added tow hook, the multi-ball mount is also the perfect accessory for recovering stuck vehicles or straight-line pulling various loads. The tow hook's capacity is limited to the trailer hitch's capacity.
The JINGCHENG multi-ball mount comes with a durable black powder coat finish on the shank to help it withstand prolonged exposure to the elements, and it features two possible attachment lengths of 7" or 8-1/2".

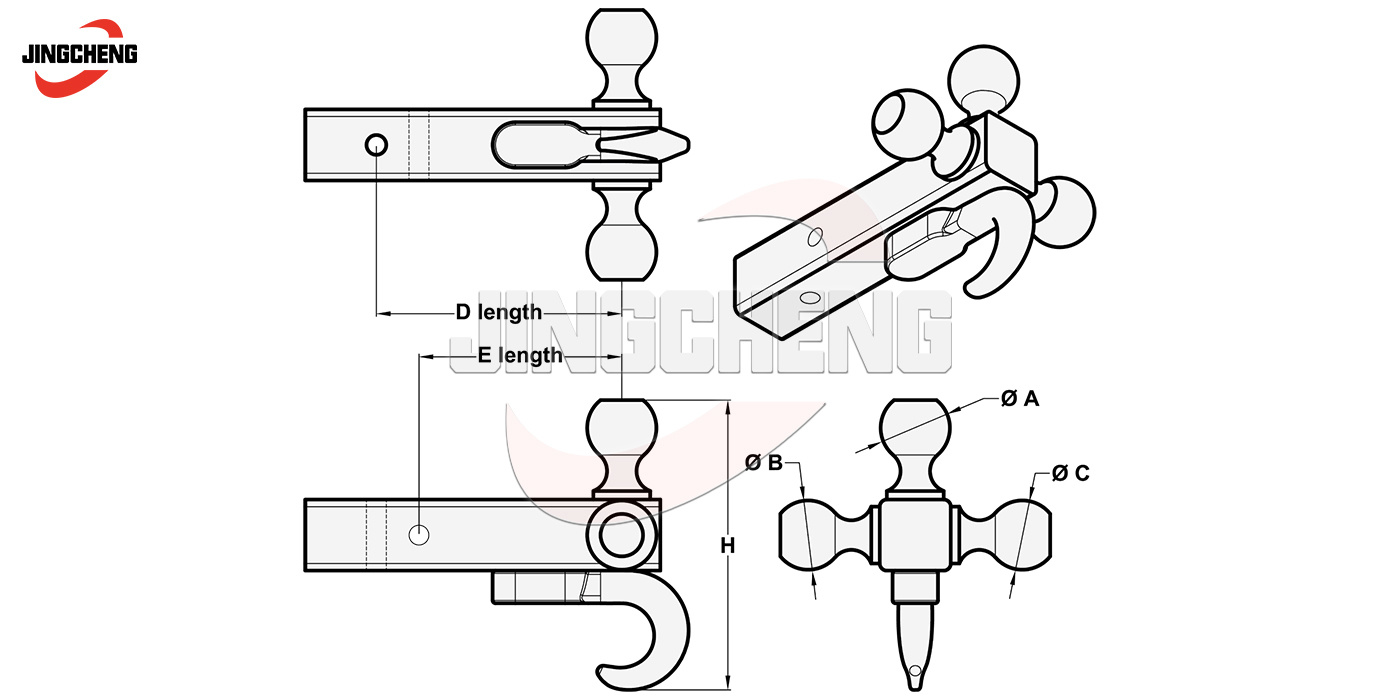

Parameter Table
| Item | Trailer Balls | Ball Diameter and Maximum GTM / TW | Length | Shank | H | Finish | |||
| 1-7/8" (C) | 2" (B) | 2-5/16" (A) | D | E | |||||
| For 2" x 2" Receiver Tube Openings | |||||||||
| JCT055-010 | 2 | 3,500 / 350 lbs. | 5,000 / 500 lbs. | 10,000 / 1,000 lbs. | 8-1/2" | 7" | Solid | 4-7/8" | Zinc-plated, Chrome,Powder Coated or Customized |
Procution Process
Quality Control
From Material to the end produce process, every step must in accordance with ISO9001 standard.
The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| lmpact Tester | No Information | 1 | 3 | Acceptable |
| Rigging Tester | No Information | 1 | 5 | Acceptable |
| Universal Tester | No Information | 5 | 3 | Acceptable |
| Failure Tester | No Information | 2 | 5 | Acceptable |
| Hardness Tester | No Information | 2 | 2 | Acceptable |
| Spectrometer | No Information | 1 | 2 | Acceptable |
Packaging & Shipping
Evaluate
JINGCHENG Advantages
Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.
Strict quality control based on ISO9001 and 12 months warranty.
Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.
