Forged Steel 50mm Tow Ball & Pin Hitch Coupling Tow Bars Pick Up 4x4 Trailer

Basic Information:
Materials: Carbon Steel, Alloy Steel, Aluminum
Process: Forging + CNC
Size: 50mm
D Value: 17.2Kn
S Value: 350kg
Color: Sliver Black etc
Package: Box or Bag or Customzied
  • Commodity name： Forged Steel 50mm Tow Ball & Pin Hitch Coupling Tow Bars Pick Up 4x4 Trailer

Category:

Towball

Email:

service@qdjcforging.com

WhatsApp:

8613805324071

Tel:

+86-532-55676631

Get A Quote
Add To Wishlist
Back to list

Key words:

Recovery Kit

Product Description

This listing is for a ball and pin hitch / coupling as pictured. Commonly fitted to 4x4's and vans etc allowing the vehicle to tow trailers with a 50mm ball OR a towing eyelet. Rated for trailers up to 3500kg. 50mm Ball and 25mm (approx) diameter pin. Includes tags to prevent the pin getting lost. Standard mounting holes (90mm centres) fits virtually all tow bars. Mount with M16 bolts (at least grade 8) with matching nuts and lock washers.

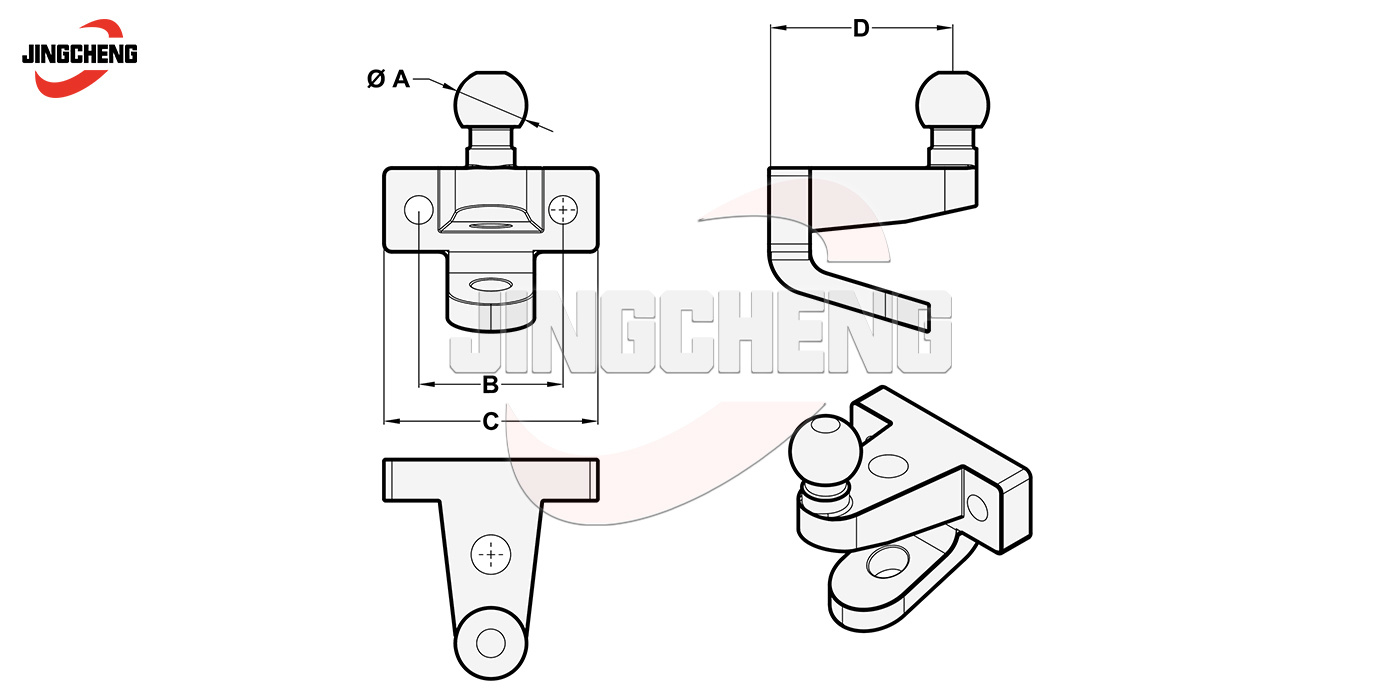

Parameter Table





ITEM  NO. Dimensions (mm) D Value (Kn) S Value (Kg) Finish
A B C D
JCT018-018 50 90 135 100 17.2 350 Chrome,
Powder Coated,Polished or Customized

Procution Process

Quality Control

From Material to the end produce process, every step must in accordance with ISO9001 standard.

The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.





Testing Machinery

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
lmpact Tester No Information 1 3 Acceptable
Rigging Tester No Information 1 5 Acceptable
Universal Tester No Information 5 3 Acceptable
Failure Tester No Information 2 5 Acceptable
Hardness Tester No Information 2 2 Acceptable
Spectrometer No Information 1 2 Acceptable

Packaging & Shipping

Evaluate

JINGCHENG Advantages

Service

Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.

Service

Strict quality control based on ISO9001 and 12 months warranty.

Service

Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.

FAQ

01

Are you factory or Trading Company?

A) We are ISO9001 certified factory,mainly deal in Forged Rigging Hardware,Forged Pole Line Hardware,Forged Auto Parts and Other Forged OEM&ODM Parts.
B) We also have good partners in our relative products,so we also act as a warehouse&distibutor through our network.We can help our clients source good quality products with suitable price if need.

02

What is your company advantages?

A) Over 15 years experience in producing and 6 years in exporting.1000T/630T/400T/300T/160T advanced forging machine and other machines.Familiar with ruling market,can give clients best reasonable price.
B) Strictly quality control regulation and experienced engineer and QC team to ensure the quality qualified.
C) Every requirement from our clients must be treated carefully and feedback fast by our experienced staff.Every Order's quality must be highly controlled by our skilled QC team.
D) WIN-WIN business is our goal. Stand in the client's angle to consider.We can give our clients best solutions in product designing,products purchasing ,shipping and quality claim.
E) Ordinary items usually have some stocks,small order can be accepted.

03

How do you control your quality?

A) Produce machine have Regular maintenance.
B) From cutting materials to the end produce process,every step must in according with ISO9001 standard.
C) Materials should be brought from big steel company,Mill Sheet must be showed.QC team must following all produce progress and make detailed testing records of the quality checking.
D) Third Party inspection is accepted.

04

What's your company mainly exporting market?

We mainly export to European Market,North American Market,Australia Market,Mideast and Southeast Asia.Because of good quality and service,we have establish good and long business relations with many clients.Welcome clients from all over the world to our factory for a visit.
