Aluminum Hawse Fairlead, for Automotive Anchor Cables Winch,Mount Smooth
- Commodity name： Aluminum Hawse Fairlead, for Automotive Anchor Cables Winch,Mount Smooth
Key words:
Product Description
The aluminum fairlead is made of aluminum alloy 6061. It's only used with synthetic winch rope. The edge of the hawse hole is more smooth and will not fray the rope. It's suitable for UTV/ATV winch. It's more light than steel fairlead, and not rusting. The surface treatment is oxidized.
Parameter Table

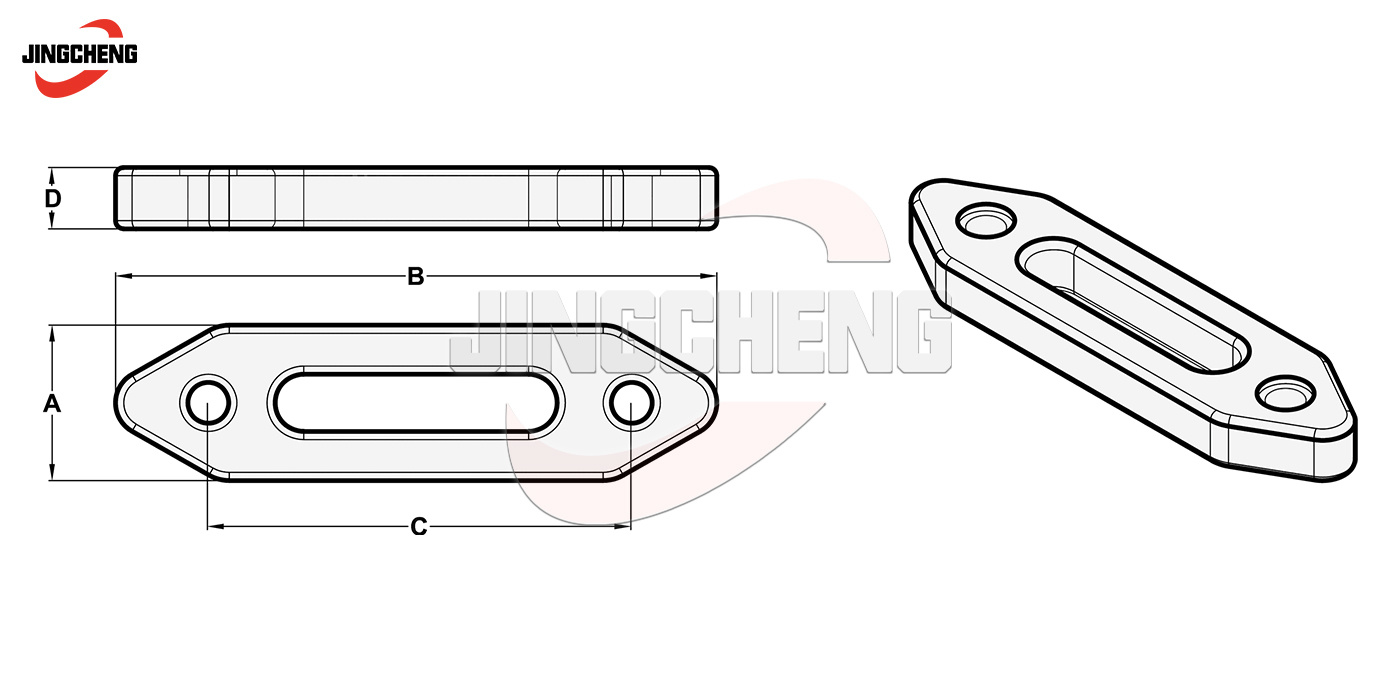

| Item | Dimensions (mm) | Working Load Limit (lbs.) | Weight Each (kg) | Finish | |||
| A | B | C | D | ||||
| JCT096-001 | 133 | 38 | 109 | 15 | 2,500 | 0.128 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-002 | 147 | 38 | 123 | 15 | 3,500 | 0.128 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-003 | 180 | 39 | 153 | 16 | 4,500 | 0.186 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-004 | 222 | 62 | 182 | 18 | 5,000 | 0.42 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-005 | 243 | 62 | 204 | 18 | 6,000 | 0.46 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-006 | 297 | 62 | 254 | 19 | 9,500 | 0.548 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-007 | 300 | 70 | 254 | 18 | 10,000 | 0.66 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-008 | 297 | 88 | 254 | 18 | 12,000 | 0.76 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-009 | 298 | 90 | 254 | 20 | 12,000 | 0.963 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-010 | 300 | 105 | 254 | 30 | 16,000 | 1.48 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-011 | 335 | 145 | 254 | 23 | 16,000 | 1.62 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT096-012 | 310 | 140 | 254 | 30 | 16,000 | 2 | Zinc-plated, Chrome,Powder Coated or Customized |
Procution Process
Quality Control
From Material to the end produce process, every step must in accordance with ISO9001 standard.
The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| lmpact Tester | No Information | 1 | 3 | Acceptable |
| Rigging Tester | No Information | 1 | 5 | Acceptable |
| Universal Tester | No Information | 5 | 3 | Acceptable |
| Failure Tester | No Information | 2 | 5 | Acceptable |
| Hardness Tester | No Information | 2 | 2 | Acceptable |
| Spectrometer | No Information | 1 | 2 | Acceptable |
Packaging & Shipping
Evaluate
JINGCHENG Advantages
Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.
Strict quality control based on ISO9001 and 12 months warranty.
Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.
