Heavy Duty 4 Way Winch Roller Fairlead Cable Lead Guide 4-1/4" 4 7/8'' 6'' 10''
- Commodity name： Heavy Duty 4 Way Winch Roller Fairlead Cable Lead Guide 4-1/4" 4 7/8'' 6'' 10''
Key words:
Product Description
This Heavy Duty 4 Way Roller Fairlead is For Winch Cable. This Roller Fairlead protects the winch cable or wire rope from excessive wear and tear. Also, it reduces binding and friction caused by pulls at certain angles. Cable and wire rope runs smoothly and easily onto winch drum. Fits most mounting brackets. All 4 rollers included Nuts to remove the rollers for proper installation. The frame is a solid welded black powder coated material very resistant to rust and oxidation. The Roller Fairlead is made to protect the winch cable or wire rope from excessive wear and tear, while eliminating the common problem of winch cable build up on one side of the drum and also reduces binding and friction caused by pulls at certain angles. Cable and wire rope runs easily onto the winch drum.

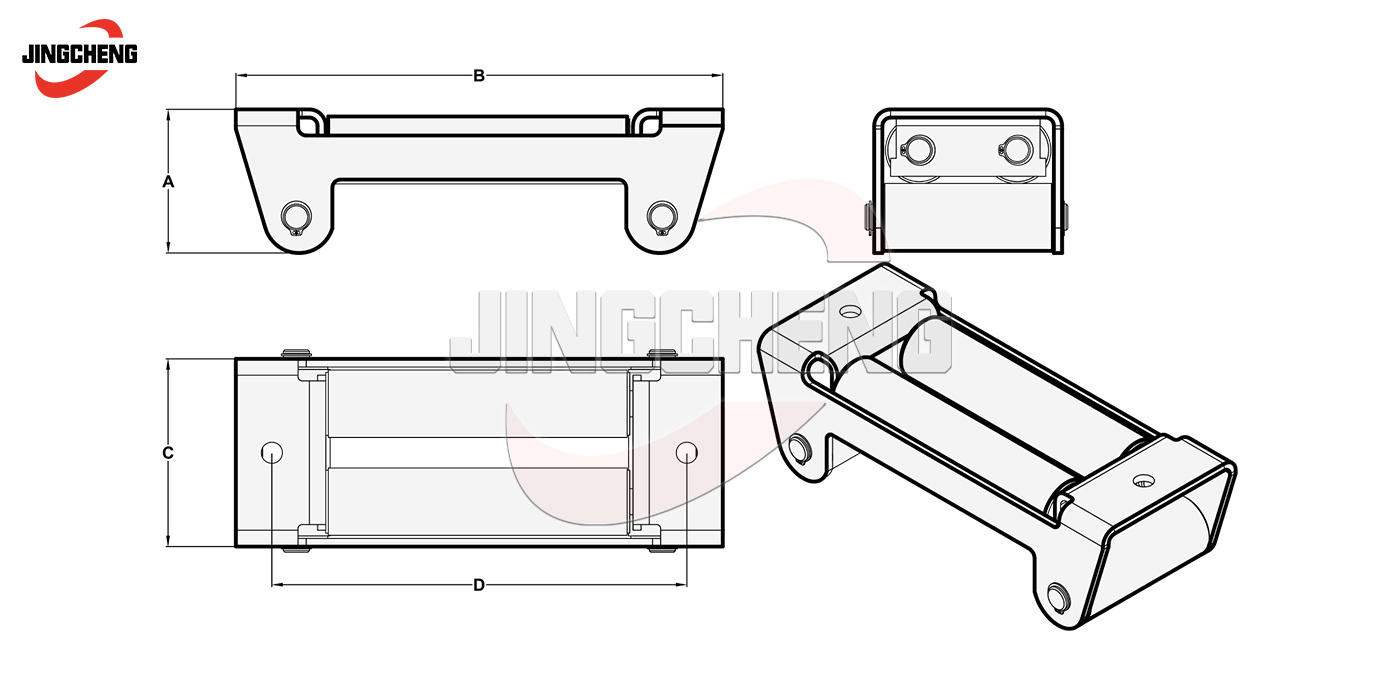

Parameter Table
| Item | Dimensions (mm) | Capacity (lbs.) | Finish | |||
| A | B | C | D | |||
| JCT108-001 | 44 | 126 | 70 | 110 | 2,000-4,000 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT108-002 | 55 | 161 | 70 | 124 | 4,500 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT108-003 | 55 | 190 | 70 | 156 | 5,000 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT108-004 | 62 | 227 | 81 | 202 | 6,000 | Zinc-plated, Chrome,Powder Coated or Customized |
| JCT108-005 | 90 | 298 | 118 | 254 | 12,000 | Zinc-plated, Chrome,Powder Coated or Customized |
Procution Process
Quality Control
From Material to the end produce process, every step must in accordance with ISO9001 standard.
The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| lmpact Tester | No Information | 1 | 3 | Acceptable |
| Rigging Tester | No Information | 1 | 5 | Acceptable |
| Universal Tester | No Information | 5 | 3 | Acceptable |
| Failure Tester | No Information | 2 | 5 | Acceptable |
| Hardness Tester | No Information | 2 | 2 | Acceptable |
| Spectrometer | No Information | 1 | 2 | Acceptable |
Packaging & Shipping
Evaluate
JINGCHENG Advantages
Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.
Strict quality control based on ISO9001 and 12 months warranty.
Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.
