Hitch Cargo Carrier Mounted Basket Foldable Luggage Rack w/ 2" Receiver
- Commodity name： Hitch Cargo Carrier Mounted Basket Foldable Luggage Rack w/ 2" Receiver
Key words:
Product Description
Even with the roomiest of vehicles, packing the car for a long trip can quickly turn into a frustrating game of Tetris. JINGCHENG cargo carriers are a simple yet effective solution for maximizing the storage area of your vehicle. The advantage of a hitch-mounted cargo carrier is that it can be mounted on the rear or front end of the vehicle as long as the vehicle is properly equipped with the right receiver hitch. Mounting a cargo carrier in the front opens up the rear receiver hitch for towing a trailer or adding a second carrier or bike rack if needed. The hitch-mounted design also makes installation quick and easy.
JINGCHENG basket cargo carriers feature a strong bolt-together design and are made with heavy-duty carbide steel and a tubular construction for increased strength. One of the advantages of the basket style is its 6" high sides. These provide extra security and peace of mind during travel. This particular basket cargo carrier features a 2" x 2" bent, folding shank to provide more ground clearance and to fold up and out of the way whenever necessary. It also comes with a strong mesh platform to accept up 500 lbs. of cargo and has a durable black powder coat finish to resist rust, scratches and UV damage. Whether you prefer the hitch-mounted carrier or the roof rack option, JINGCHENG has cargo management solutions to meet your needs.

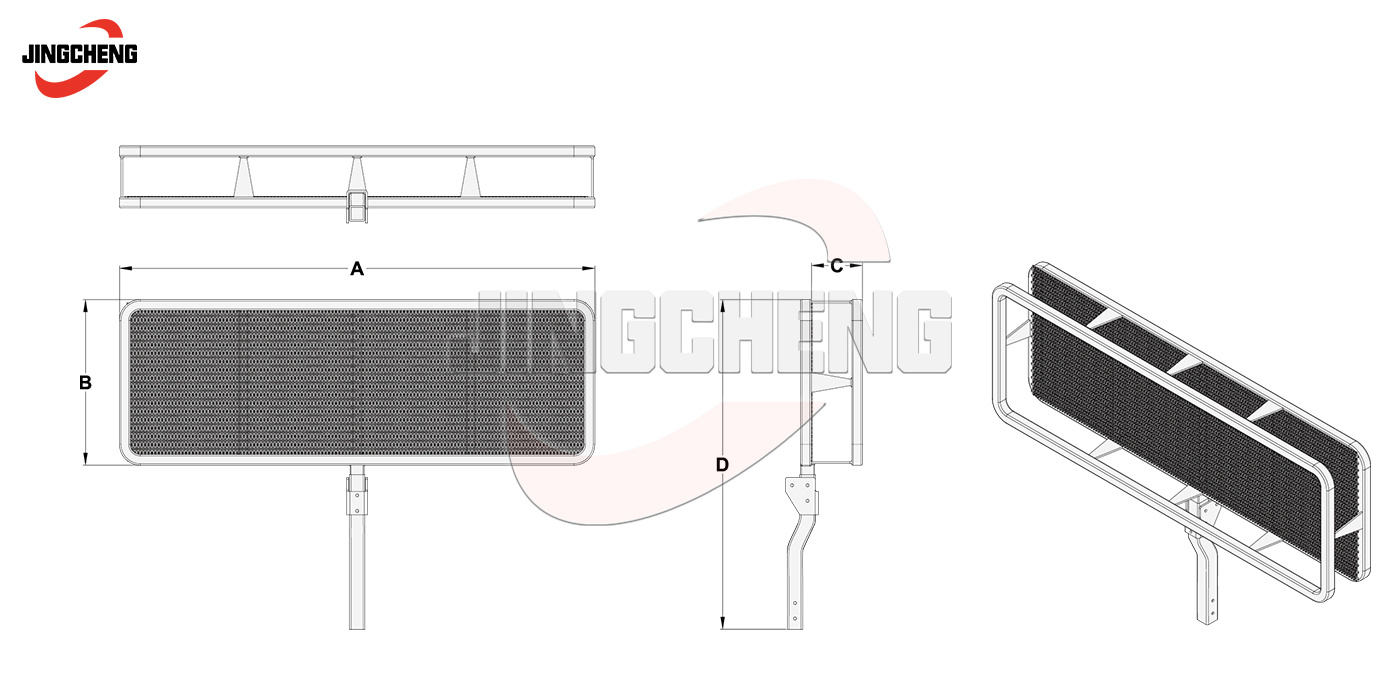

Parameter Table
| Item | Capacity | Inside Dimensions (mm) | D | Shank Size | Shank | Finish | ||
| A | B | C | ||||||
| JCT130-020 | 500 lbs. | 59-1/2 | 20-1/4 | 5-1/2 | 34-1/4" | 2" x 2" | Fixed | Carbide Black, Zinc-plated, Chrome,Powder Coated or Customized |
| JCT130-021 | 500 lbs. | 58 | 20 | 5-1/2 | 39-3/4" | 2" x 2" | Folding | Carbide Black, Zinc-plated, Chrome,Powder Coated or Customized |
| JCT130-022 | 500 lbs. | 60 | 24 | 6 | 39-1/8" | 2" x 2" | Fixed | Carbide Black, Zinc-plated, Chrome,Powder Coated or Customized |
| JCT130-023 | 500 lbs. | 60 | 23-3/4 | 5-1/2 | 47-7/8" | 2" x 2" | Folding | Carbide Black, Zinc-plated, Chrome,Powder Coated or Customized |
| JCT130-024 | 500 lbs. | 46-1/2 | 17-1/2 | 5-1/2 | 27-1/2" | 1-1/4" x 1-1/4" 2" x 2" | Fixed | Carbide Black, Zinc-plated, Chrome,Powder Coated or Customized |
Procution Process
Quality Control
From Material to the end produce process, every step must in accordance with ISO9001 standard.
The tests including Dimensional test, Zinc thickness test, Tensile test and Hardness test.
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| lmpact Tester | No Information | 1 | 3 | Acceptable |
| Rigging Tester | No Information | 1 | 5 | Acceptable |
| Universal Tester | No Information | 5 | 3 | Acceptable |
| Failure Tester | No Information | 2 | 5 | Acceptable |
| Hardness Tester | No Information | 2 | 2 | Acceptable |
| Spectrometer | No Information | 1 | 2 | Acceptable |
Packaging & Shipping
Evaluate
JINGCHENG Advantages
Provide OEM/ODM sevice, Thinkwell can according to your idea or a sketch to provide free design.
Strict quality control based on ISO9001 and 12 months warranty.
Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty, Low MOQ, moer than 10pcs is accepted.
FAQ
01
Are you factory or Trading Company?
02
What is your company advantages?
03
How do you control your quality?
04
What's your company mainly exporting market?
